Fr4 94v0 Electronic Turnkey PCB Assembly
shenzhen turnkey OEM fr4 94v0 electronic pcb manufacture assembly factory with bga assembly service
Leadsintec provides advanced manufacturing services that benefit the customer's products and business successfully. From 1 unit to 100K units level, we would stand by to support you through the manufacturing field. We have a flexiable production process that enables the quick turnkey solution to the personal makers or small start up companies with small production orders. By the standard manufacturing solutions, our customers obtain the benefits of supply chain consolidation, consistent manufacturing efficiency, and lower costs. Leadsintec will become the premier one-stop factory for our customers manufacturing needs.
PCB Fabrication Service
We are flexible manufacturing PCB’s to your exact qualification whether it is single or complex multiple layered boards. Key PCB capability include:
* PCB Layers: 1~48 or multiple layers
* Material: FR-4, Aluminum, Flexible
* PCB thickness: 0.4~7.0mm
* PCB maximum size: 700mm * 650mm
* Min Tracking/Spacing: 3.5mil
* Drilling hole diameter: 0.2~6.3mm
* Minimum character: line width 6mil, height 32mil
PCB Assembly Service
Our engineer team can support NPI prototypes to mass production with global facilities capabilities.
Key PCBA capability include:
* Board with size 700 x650 mcm
* Able to process 0.35 pitch micro BGA, AQFN QFP, QFN, & AQFN (advanced quad flat no-leads)
* RoHS / Non-RoHS compliant assembly
* Clean or no clean process
* Machine SMT and through-hole assembly
* 100% Material procurement, 100% consigned material management or hybrid
PCB Assembly Capabilities
| Quantity | Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
| Type of Assembly | SMT,Thru-hole |
| Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
| Components | Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
| Bare Board Size | Smallest:0.25*0.25 inches Largest:20*20 inches |
| File Formate | Bill of Materials Gerber files Pick-N-Place file |
| Types of Service | Turn-key,partial turn-key or consignment |
| Component packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same day service to 15 days service |
| Testing | Flying Probe Test,X-ray Inspection AOI Test |
| PCB assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
PCB PCBA Testing With Multi-step Verification
Although we are fast on every process , we never ignore the quality, our experienced QC team and highest advanced equipment can make sure your prototypes good quality and best fully-functional.
Comprehensive Quality Assurance
There is no shortcut for quality,and our goal just is to make well every printed circuit board. We have imported the advanced machinery from US,Japan,German and Israel to improve our production and technical ability.We have set a great example the PCB field of flying probe testing,buried and blind via and special controlled impedance. Finished PCB Assemblies are checked for proper component placement and functionality with a variety of methods including AOI Inspection, In-Circuit testing, and X-Ray inspection.
OEM Service - PCB Assembly
With 20 years pcb manufacturing and pcb assembly experienced, Leadsintec has occupied a place in industry pcb production, automotive circuit board, medical pcb assembly, smart home pcb fabrication, communication pcba, military & aerospace pcba etc.
Service
* Small to a medium volume PCB manufacturer
* Multi PCB types manufacturer
* EMS/PCBA/OEM customers reliable PCB partner
* Trustworthy supplier for PCB trading companies
Product Tags:
|
|

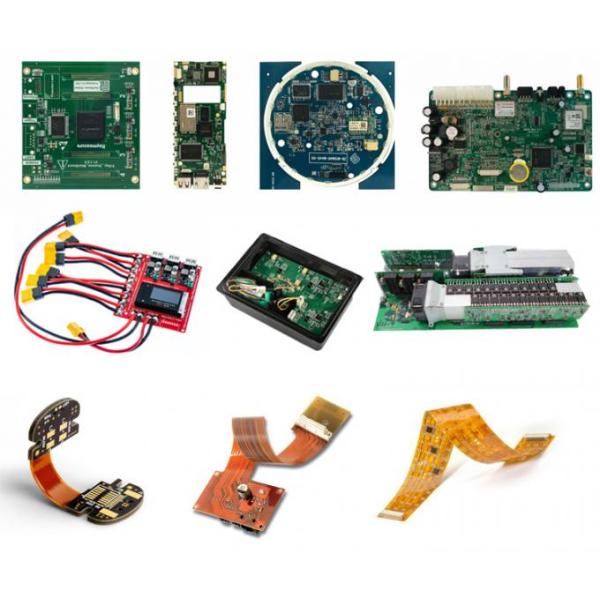

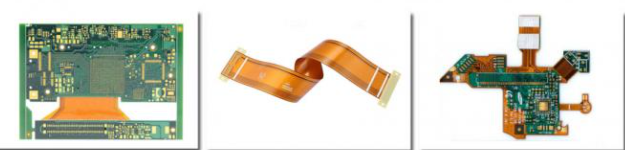

Fr4 94v0 Turnkey PCB Assembly Images
|
